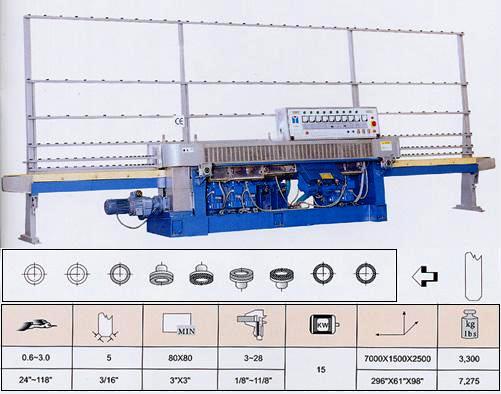

YH9.320 Glass Straight Line Edging Machine
The function of first five grinding wheels are rough, fine grinding, and polishing the flat edge, and there are two grinding wheels on both sides which process 45obottom arris. Solid fixture transmit according to the step less regulator. Front arris wheels moved with the front beam synchronously when processing various thickness of glass. Being stable when processing large size glass.
High precision and easy operation. Installed power:15kw,glass thickness:3mm-28mm,min size:80mm.Occupancy:1.5mX7m.(Note:with crane and sucker plate when processing large glass over 3mX3m)

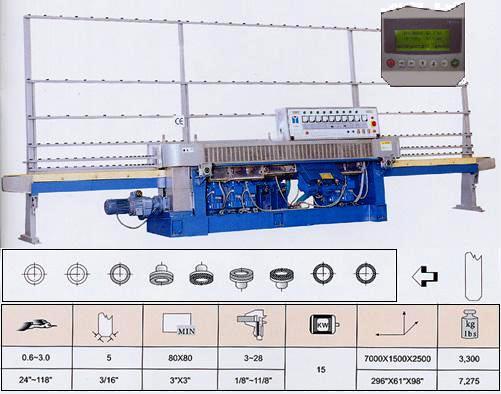

YH9.320P Glass Straight Line Edging Machine With PLC
The machine is controlled by PLC with automatic and manual two operating models. It can preset the glass thickness, and the parameters can be displayed on a LCD access unit. The function of first five grinding wheels are rough, fine grinding, and polishing the flat edge, and there are two grinding wheels on both sides which process 45obottom arris. Solid fixture transmit according to the step less regulator. Front arris
High precision and easy operation. Installed power:15kw,glass thickness:3mm-28mm,min size:80mm.Occupancy:1.5mX7m.(Note:with crane and sucker plate when processing large glass over 3mX3m)

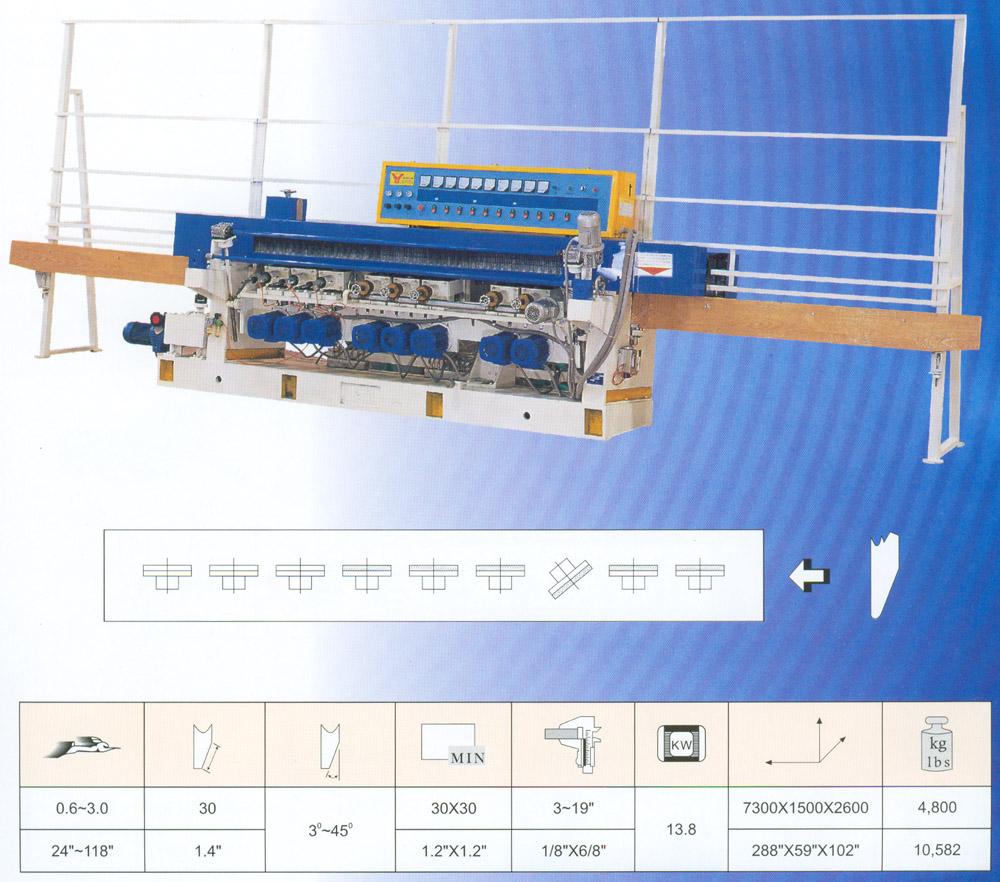

YG9-3SB 9 Heads Glass Straight Line Bevelling Machine
Adjust speed with step less regulator. Two rough, three fine grinding wheels, one bowling wheel and three pneumatic polishing wheels. Grinded glass with round bottom side, the bevel width:0-30mm, the thickness of glass : 3-19mm.
The front transmitting board have up-and-down adjusting system. It can be adjusted according to the size of the glass.

The machine can bevel 30mmX30mm small glass, which is suitable to produce carving glass handiwork glass, jewellery box, candle box, and so on. Installed power: 13.8kw. Occupancy : 1.5m X7m.

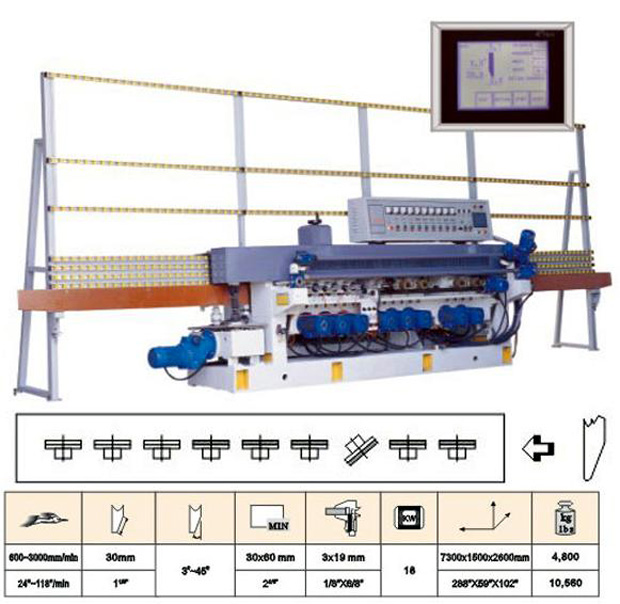

YG9-3SBP 9 Head Glass Straight Line Bevelling Machine
It is controlled by PLC with automatic and manual operating models. Adopts speed with step less regulator. Two rough, three fine grinding wheels, one bowling wheel and three pneumatic polishing wheels. Grinded glass with round bottom side, the bevel width: 0-30mm, the thickness of glass: 3-19mm. The front transmitting board have up-and-down adjusting system. It can be adjusted according to the size of the glass, The machine can bevel 30mm × 30mm small glass, which
is suitable to produce carving glass, handiwork glass, jewellery box, candle box, and so on.
Installed power: 13.8kw. Occupancy: 1.5m ×7m.
