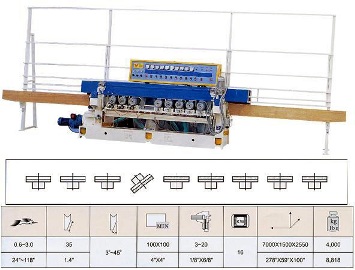

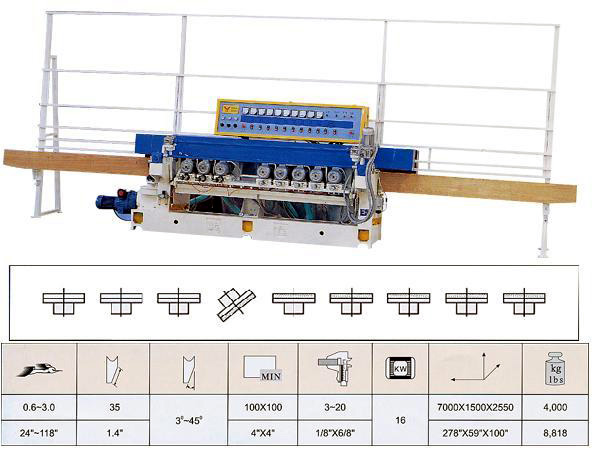

YG9-45°B Glass Straight-Line Angle-Changing
Bevelling Machine
|
|
|
Applying 9 grinding wheels:
two rough, three fine, one bowling and three pneumatic
polish grinding wheels. Adjust speed with step less
regulator. Reasonable design and easy operation.
Suitable to process the glass of architecture, furniture
and interior architecture. |
|
It can bevel
the glass thickness of 3-19mm .And it also can bevel the
angle of 0°-45°.Min glass size:100mm × 100mm.
Occupancy:1.5m × 7m, Installed power:16kw. |
|

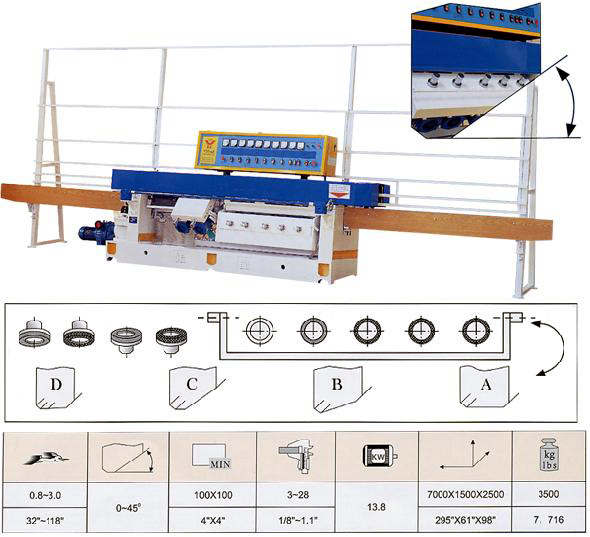

YG9-45E Glass
Straight-Line Multi-Edge Grinding
Machine
|
This machine has two functions. It can be used as a 9
straight-line edging Machine. The first five grinding
wheels which rough, fine and polishing process the edge.
And it can also bevel the angle of 45 and multi edge. It can
be adjusted the speed with step less regulator.
Glass thickness:3-28mm Glass size:max:3000mm
×3000mm,min:100mm × 100mm |
|
|
Occupancy:1.5m ×
7m. Installed power:13.8kw.
|
|

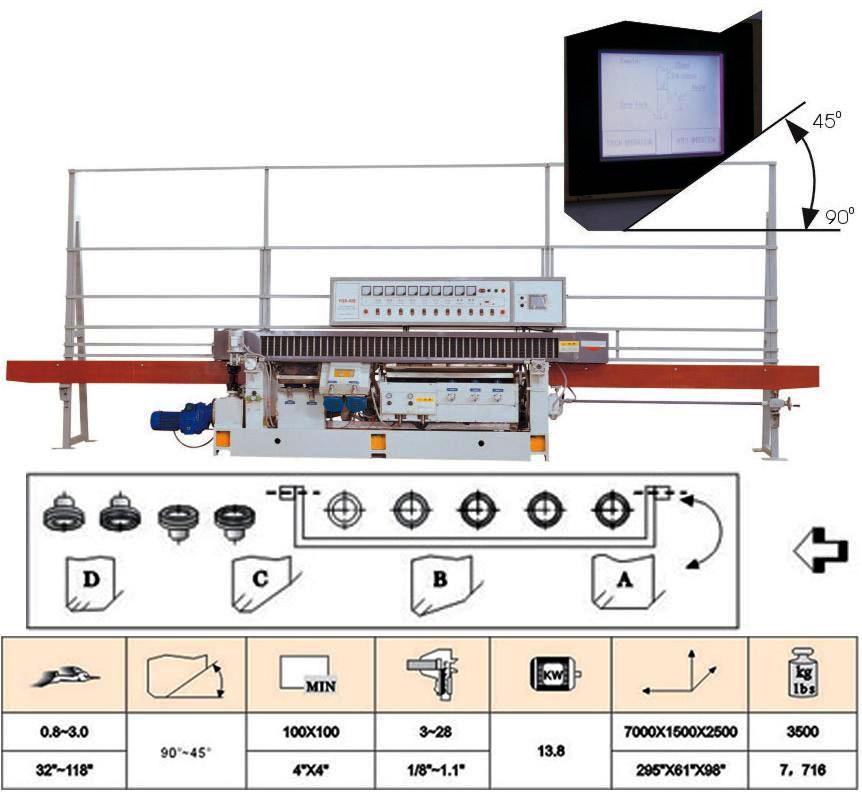

YG9-45EP Glass
Straight-Line Multi-Edge Grinding
Machine With PLC
|
|
|
It can
grind and polish flat edge, angle changing edge and
arises. It is controlled by PLC with automatic and
manual operating models. It can preset the glass
thickness and angle, and display the above
parameters on a LCD data access unit.
Glass thickness:3-28mm Glass size: max:3000mm x
3000mm ,min:100mm × 100mm
|
| Occupancy:1.5m ×
7m. Installed power:13.8kw. |
|
|
| |
|
|
