MACHINERY

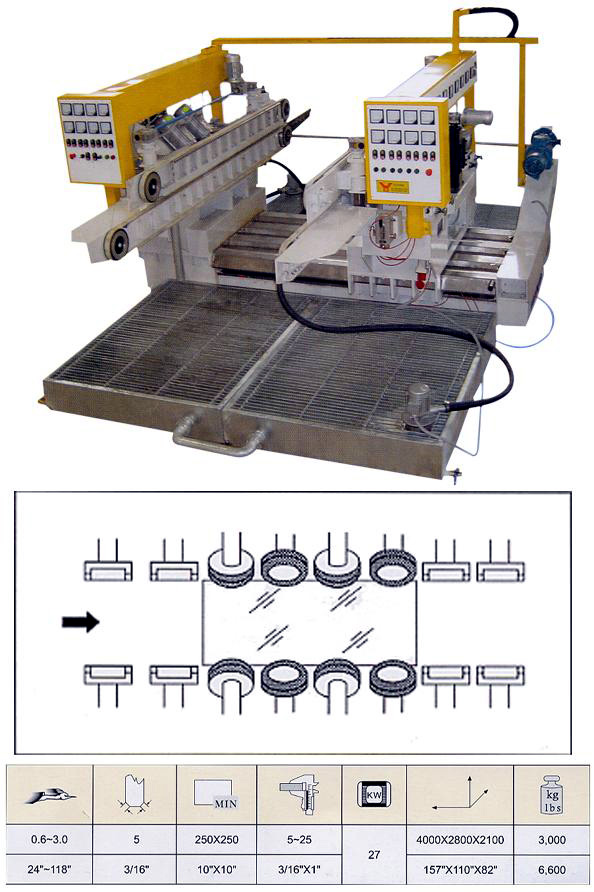

YG16-1 Glass Straight-Line Double Edging Machine

This machine can grind the two parallel straight-line edges of glass sheet synchronously. Glass horizontally input, adopted step less regulator. Width is adjustable according to the requirement. Max width: 1460mm. High precision and easy operation. It is an ideal equipment for batch processing of same size glass.

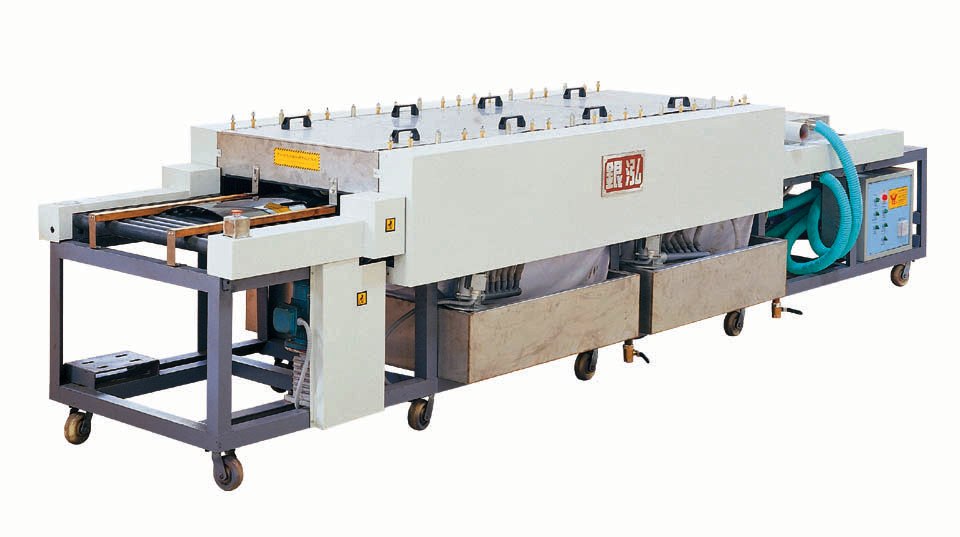

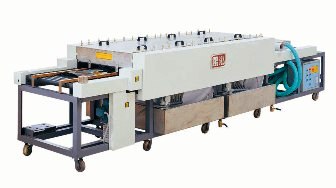

YG800 Arc Shaped Glass Washing Machine
Arc-shaped glass washing machine for automatically washing and drying any different thickness of arc-shaped glass with 10 brushes.
It is double-stage washing, with horizontal transmission system and use blast and thermodynamic wind system for drying.
The machine should be made to order if washing house wares glass with 400mm-600mm width and 20mm-50mm arc depth or automobile side windowpane.



YG1500LC Vertical Glass Washing Machine
Vertical glass washing machine for automatically washing and drying any different thickness of flat glass with 6 brushes and 4 sponge rollers and with vertical transmission system.

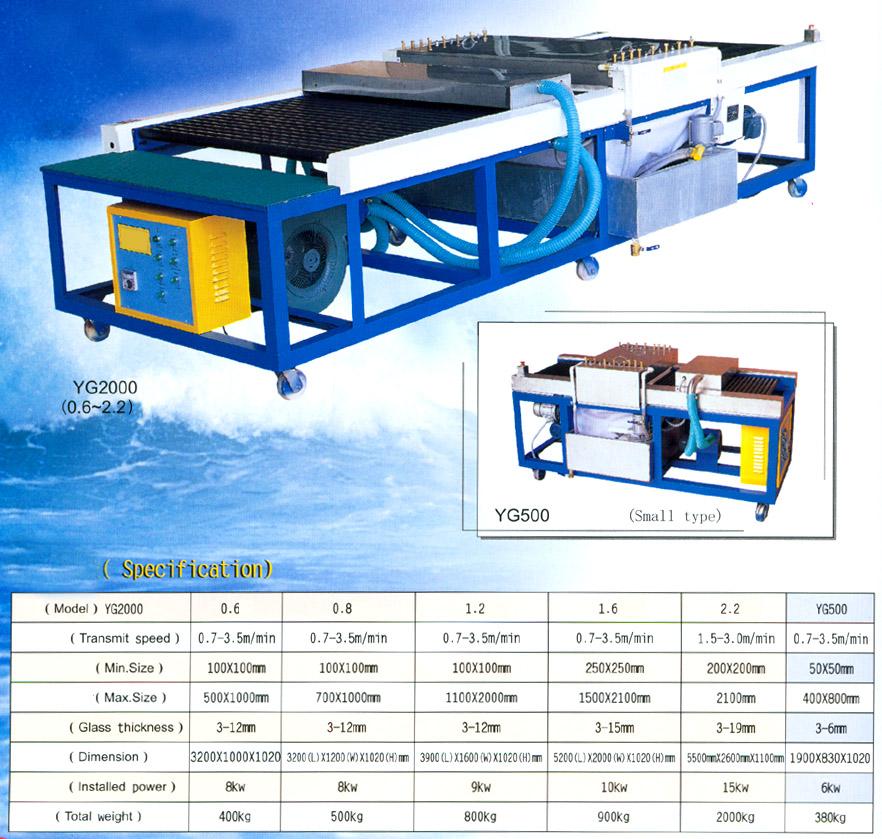

YG2000 Glass Washing Machine
Glass washing machine is used for automatically cleaning and drying the glass or mirror with the thickness 3mm-19mm. Adopt horizontal transmission, washing and drying by four pairs of brush rollers and three pairs of sponge rollers, hot air drying system and speed is adjustable.
Model 0.6~1.2m is single stage washing. Model 1.6~2.2m is two-stage washing.
