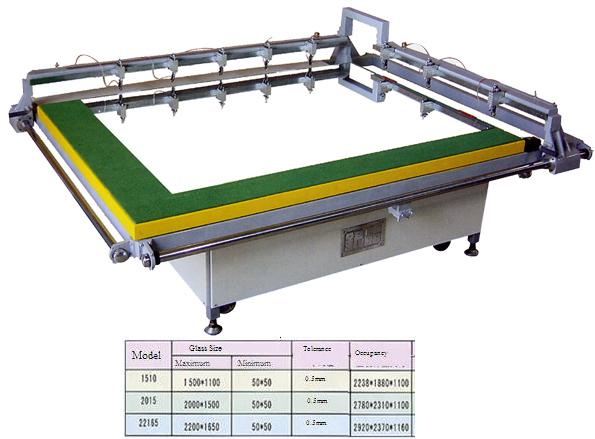

Precision Cutting Table
The precision cutting table, applies to cut batch square flat glass for 4~15mm.Fixing / rectifying / cutting should be done following the micrometer adjust the cutter frame and made it up to the precision requirement.

Then to push both the vertical bridge and the horizontal bridge separately and it can do the batch cutting.

FEATURES:-

  • It is with high efficiency and easy operation to cut with     multi-cutter.
  • Cutter holder with self-lubricating, and easy to change the cutter wheel.
  • It is with the high precision and long life.
  • Thickness for cutting glass is for 4~15mm,The max size of cutting 2.2 × 1.6m, The Min size of cutting 50 X 50mm,The cutting precision:+0.15mm/m
  • Special glass-platform can be designed by the requirement of customers.

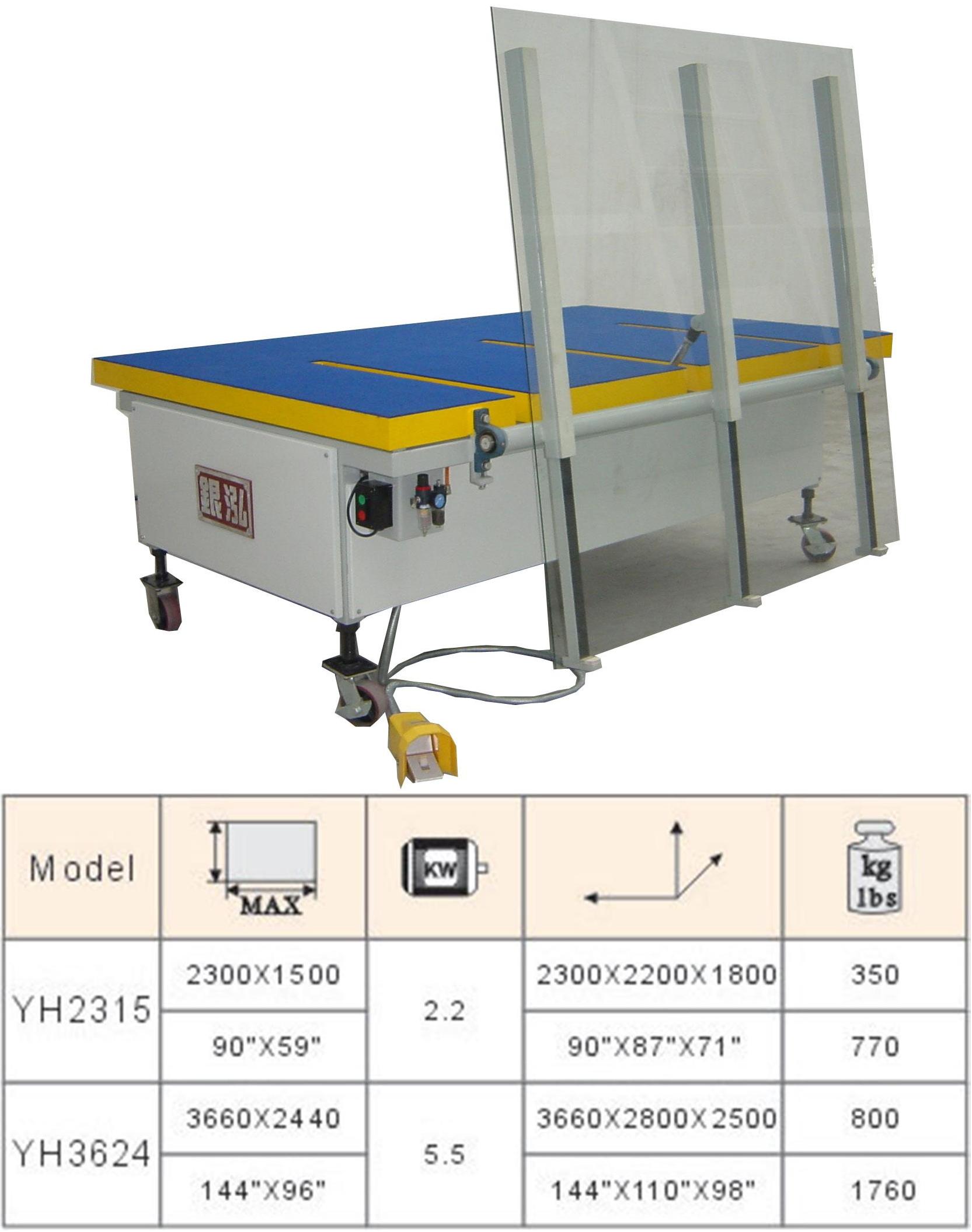

YH2315/3624 Glass Automatic Loading Table
Load table with tiling forks to load glass sheets.



It is therefore possible to load while the table is operating.

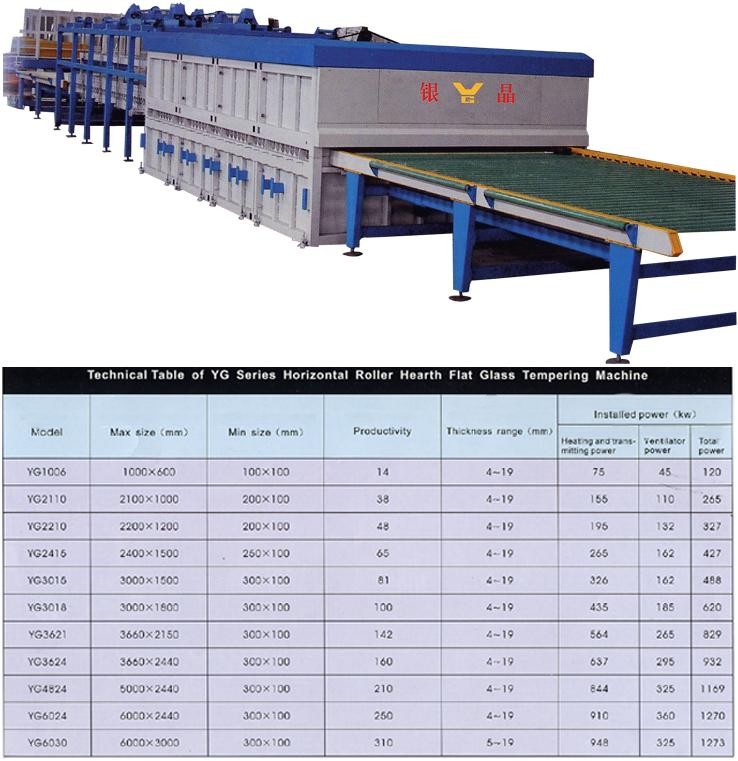

Tempering Furnace
Above productivity is calculated on 100% utilization and over 95% finished product rate based on 5mm thickness glass.

 We can produce horizontal roller hearth bent glass and series tempering furnaces
