MACHINERY
|
Manufactured with steel plate, has usable inside size
of (mm)1000 x 800 x 400 and outside size of (mm) 1250 x
1050 x 1200 and has quarts heating elements and
insulation with ceramic fibre material for high
temperature (up to 1260oC).
The electronic
control board can store 2 |
|
programmes with 15 levels each, specially to be used to
fuse and bend glass and bend wash basin.
Max. Temp. : 1000 C
Power : 9 KW,3 PHASE 50/60 HZ,380 V |
|
|
Manufactured with steel plate, has usable inside
size of (mm) 2000 x 1000 x 400 and outside size of
(mm) 2250 x 1250 x 1200 and has quarts heating
elements and insulation with ceramic fibre material
for high temperature (up to 1260 oC). The
electronic control board can store 2
|
|
programmes
with 15 levels each, specially to be used to fuse and
bend glass and bend wash basin.
Max. Temp.: 1000 C
Power:18 KW, 3 PHASE 50/60 HZ, 380 V |
|

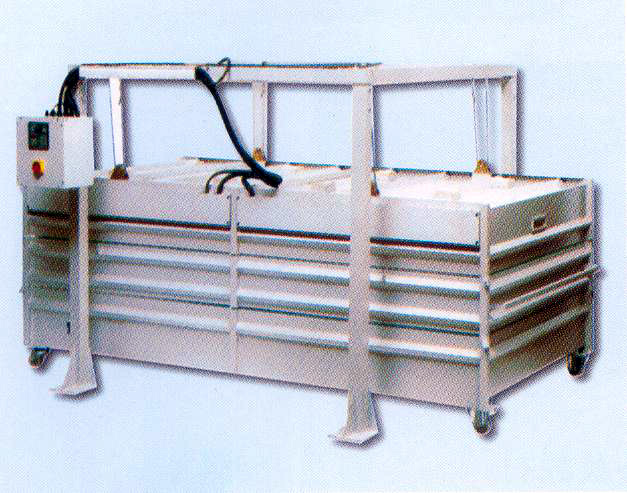

The
Kiln Machine is manufactured with steel plate, has
usable inside size of 3000 X 1800 X 400mm and outside
size of 3200 X 2000 X 1900,and has quarts heating
elements and insulation with ceramic fibre material for
high temperature of up to 1260 C. The electronic control
board can store 2 programmes with
|
|
15
levels each, specially
to be used to Fuse, Kiln & Bend Glass and Bend wash Basin &
Bowls.
Technical Specifications:
Max. Temp.: 1000 C.
Power : 30 KW, 3 phase 50/60 HZ, 380 V |
|

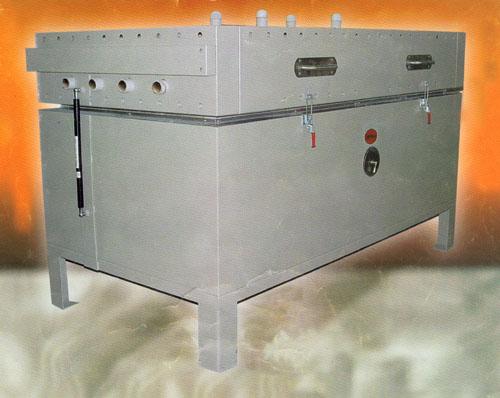

Kiln
(Transparent Wash Basin)
|
|
|
Manufactured with steel plate, is specially designed for
bending transparent wash basin, with high efficiency and
quality. It has usable inside size of (mm) 1800 x 800 x
300 and outside size of (mm) 2000 x 1250 x 1200 and
has quarts & heating
elements and insulation with ceramic
|
fibre
material for high temperature (up to 1260 C). The
electronic control board can store 2 programmes with 15
levels each. It has to be combined with WASH BASIN
SHAPER to bend and shape the completely transparent wash
basin.
Max. Temp.: 1000
oC
Power: 18 KW, 3 PHASE 50/60 HZ,
380 V |
|
|
 |
|
|
