GWP-1240
-
Pass
the ISO9002 international quality system certification,
accord with the National QB/T3884-1999 Standard.
- The
super thin body design with a thickness of only 40mm
can reduce the drilling depth to the floor and is
easy to install.
- The
built-in decompression valve can prevent the oil leakage
or damage to the floor spring caused by door closing
under the external pressure or strong wind.
- Provided
with high grade hydraulic lubricant with solidifying
point below -40°, which is suitable for installation
and applications under the weather.
- It
is available with or without the 90° stopping
device.

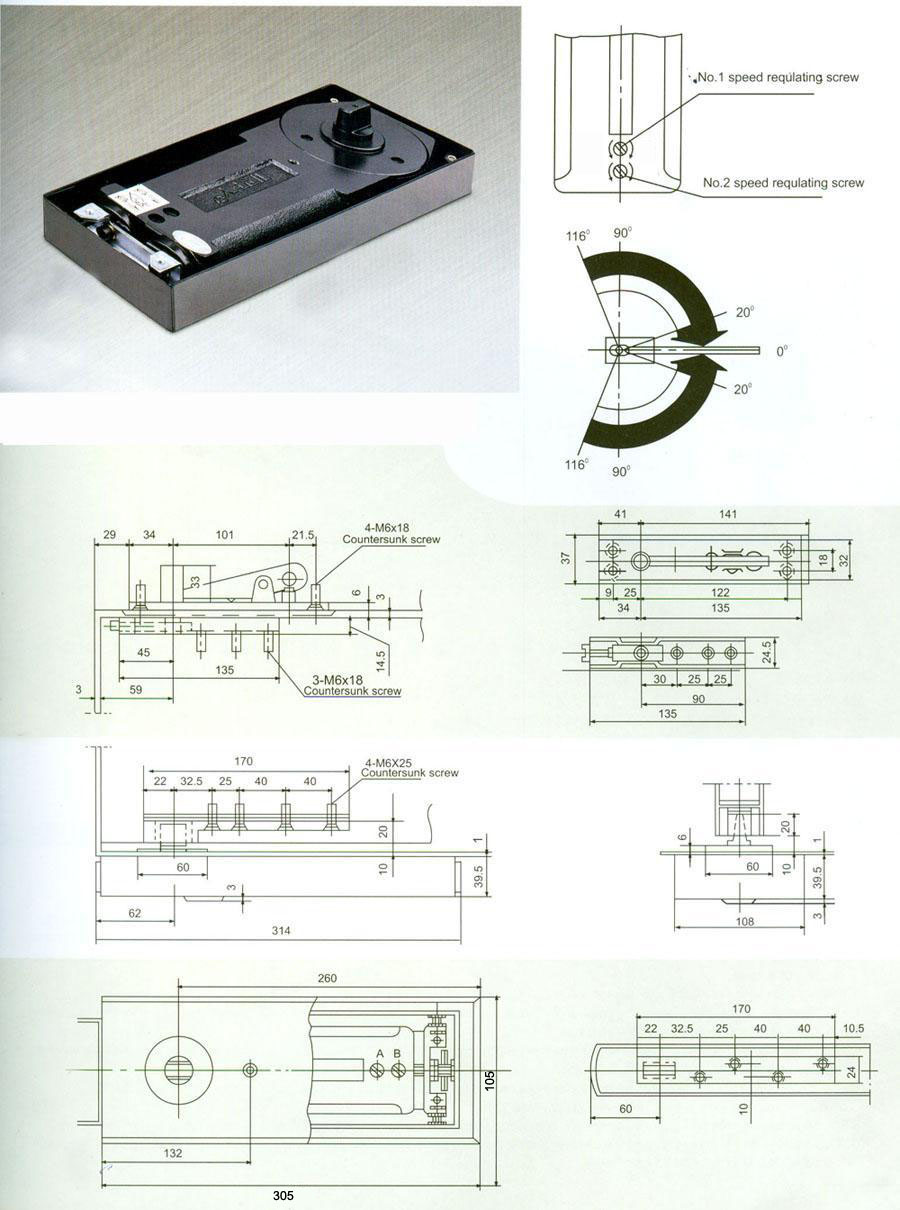

- Two
door-closing speed regulation valves of 116° to
0° and 116° to 20° are provided to meet
the different door closing effects.
- Custom-made
fire-proof floor spring can be made according to the
requirements of customers.
- The
bearing capacity is up to 130 kg, and the maximum
width of door is 1050mm, which is suitable for different
doors.
| Model
number |
Applicable
Door Dimensions (Maximum width x Height) mm |
Maximum
Door Weight Kg |
floor
Hinge
Dimensions (Length x
Width x
Depth) mm |
G.W
(kg) |
N.W(Kg) |
Qty |
MEAS |
| GWP-1240
|
1050x2400 |
130 |
305x105x40
|
28
|
27.8
|
4PCS
|
38.5
x
30.5 x
19CM |
| GWP-1230 |
950x2100 |
105 |
GWP-1230
|
