Tempered Glass Fittings

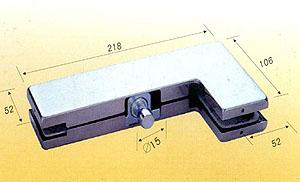

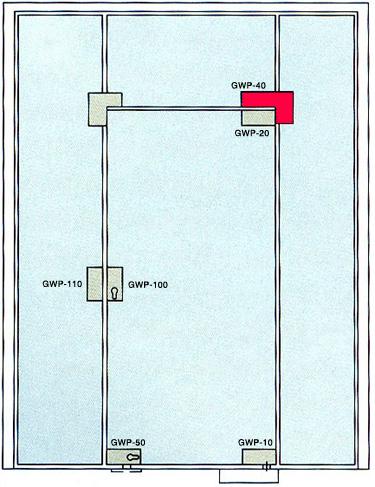

GWP-40 Corner transom fitting
* for overpanel and sidepanel.
* with pivot Ø15mm.
* two options in the pivot point,
distant from the sidepanle for frame can be either 55mm or 65mm.


Click to enlarge Image

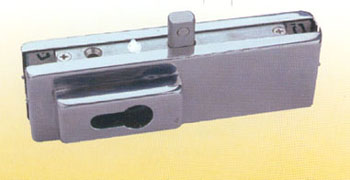

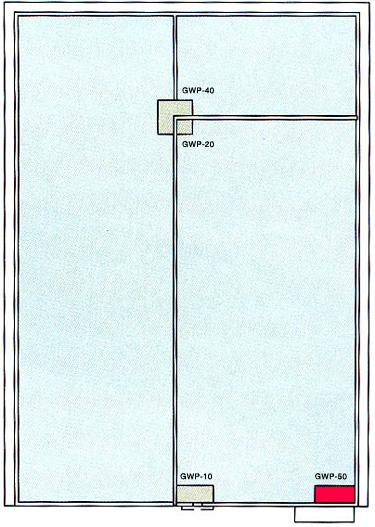

GWP-50 Corner lock


Click to enlarge Image


* for Security and easy installation, all screw heads are
  in one side fixing and keep in inside door.

* No need to take down the door when changing
  Europrofile cylinders, simply use one screw drier.
* For right or left side door, lock mechanism part
  can be reversed easily be loosing two screws only.
* for security, inside hardened roller pin included.
